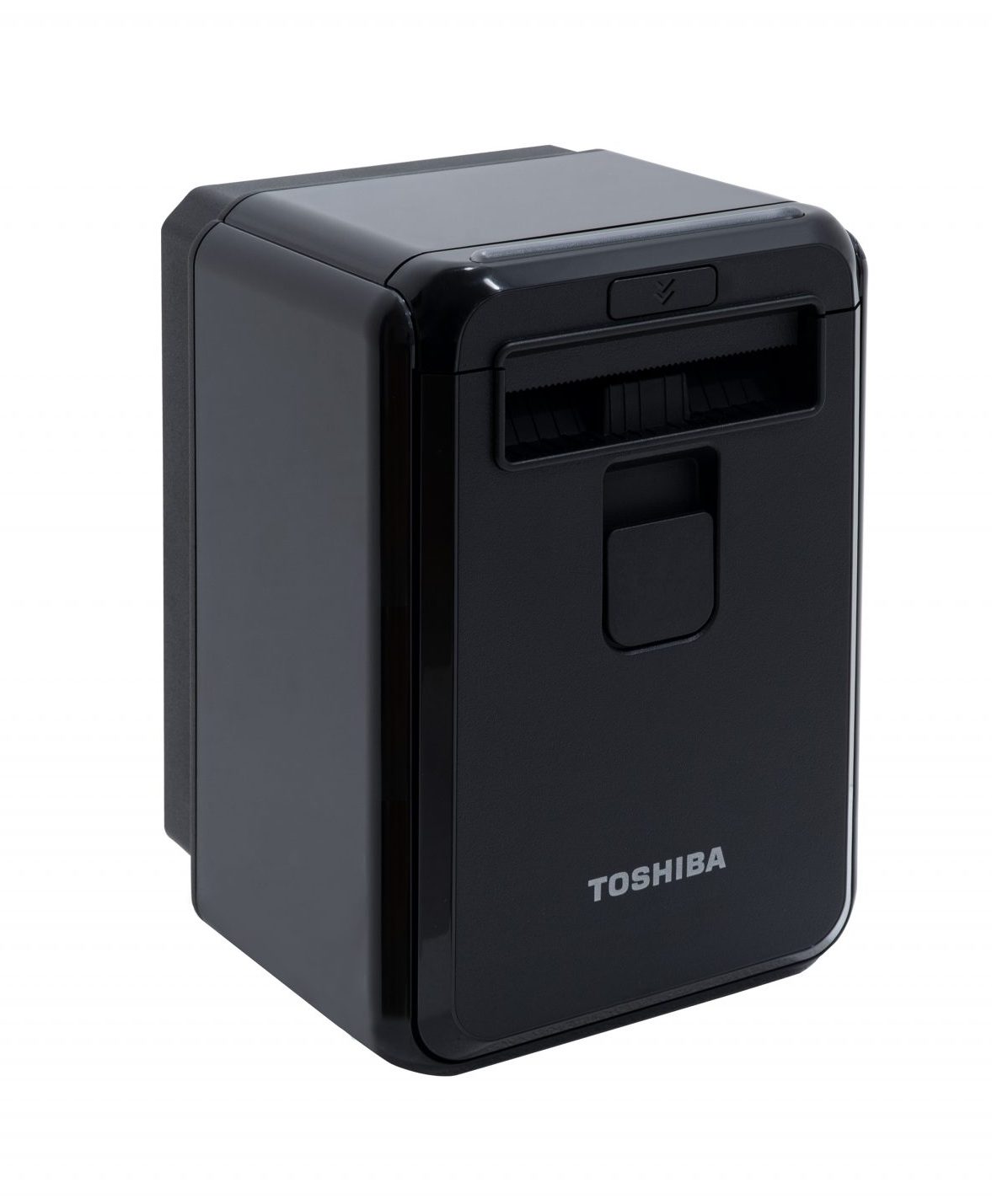

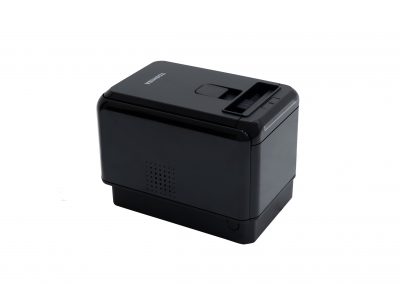

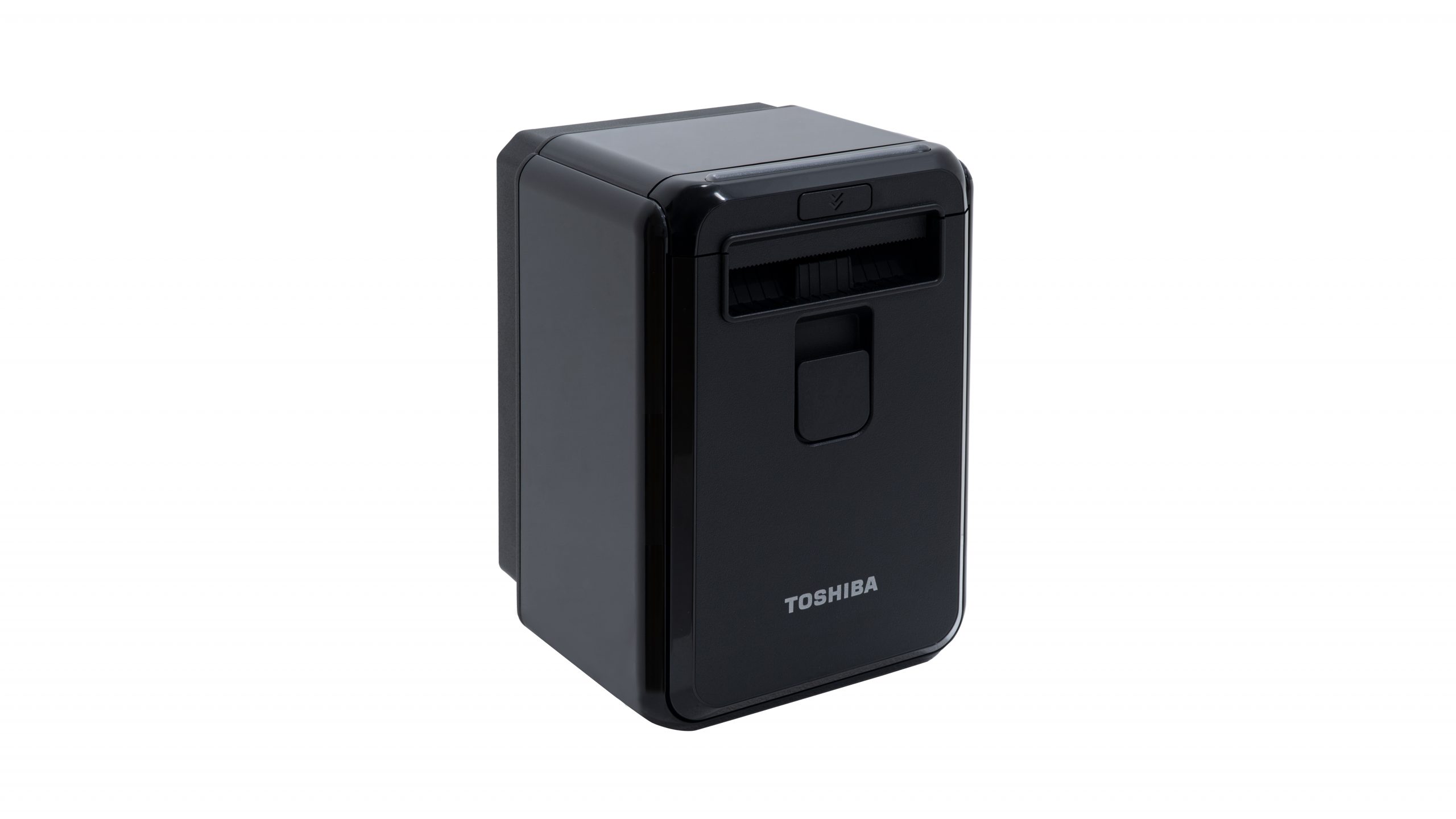

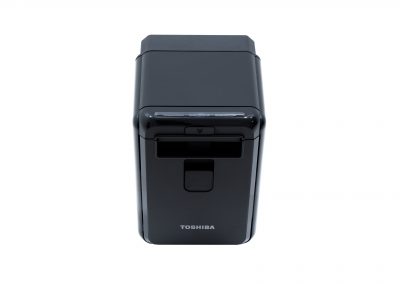

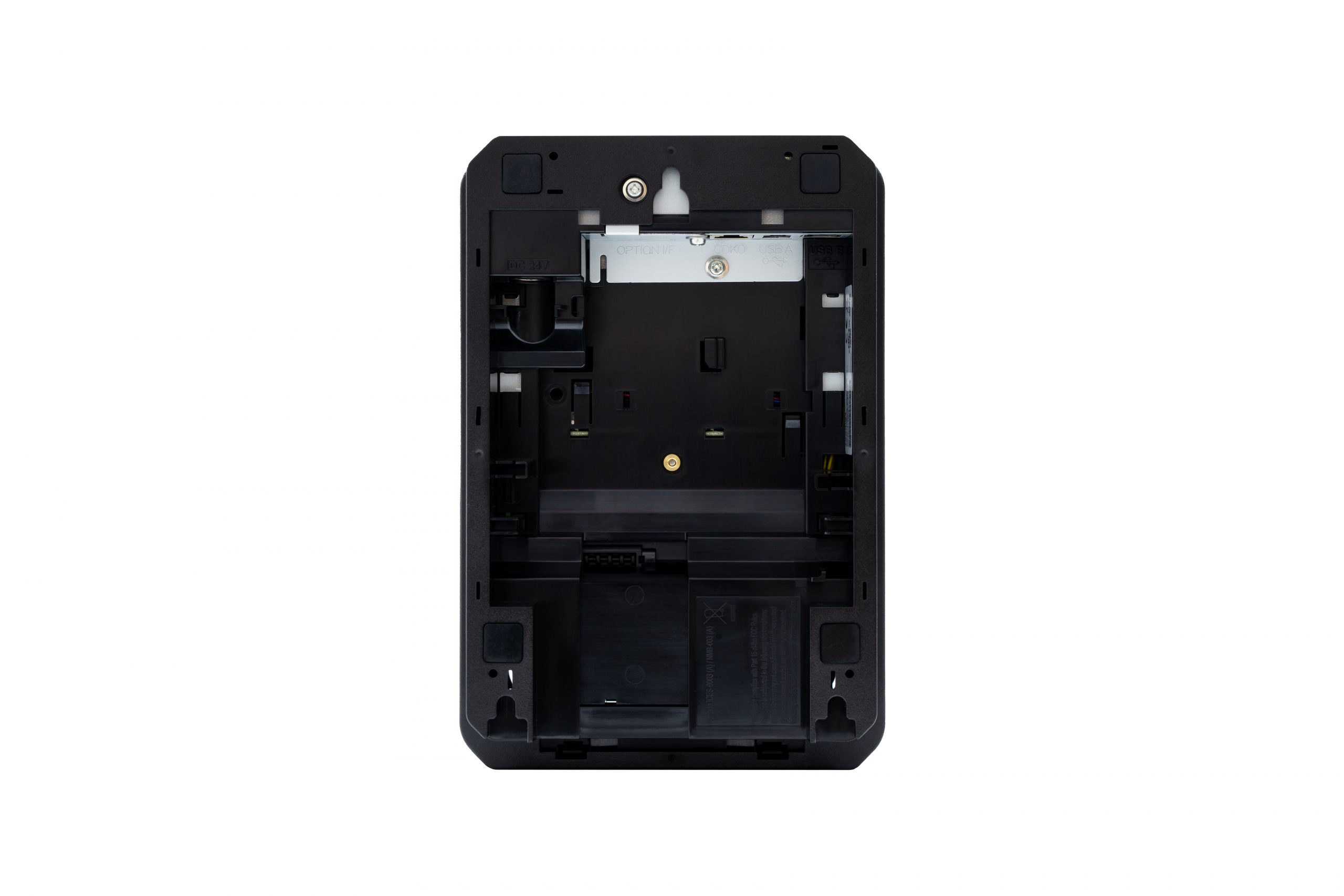

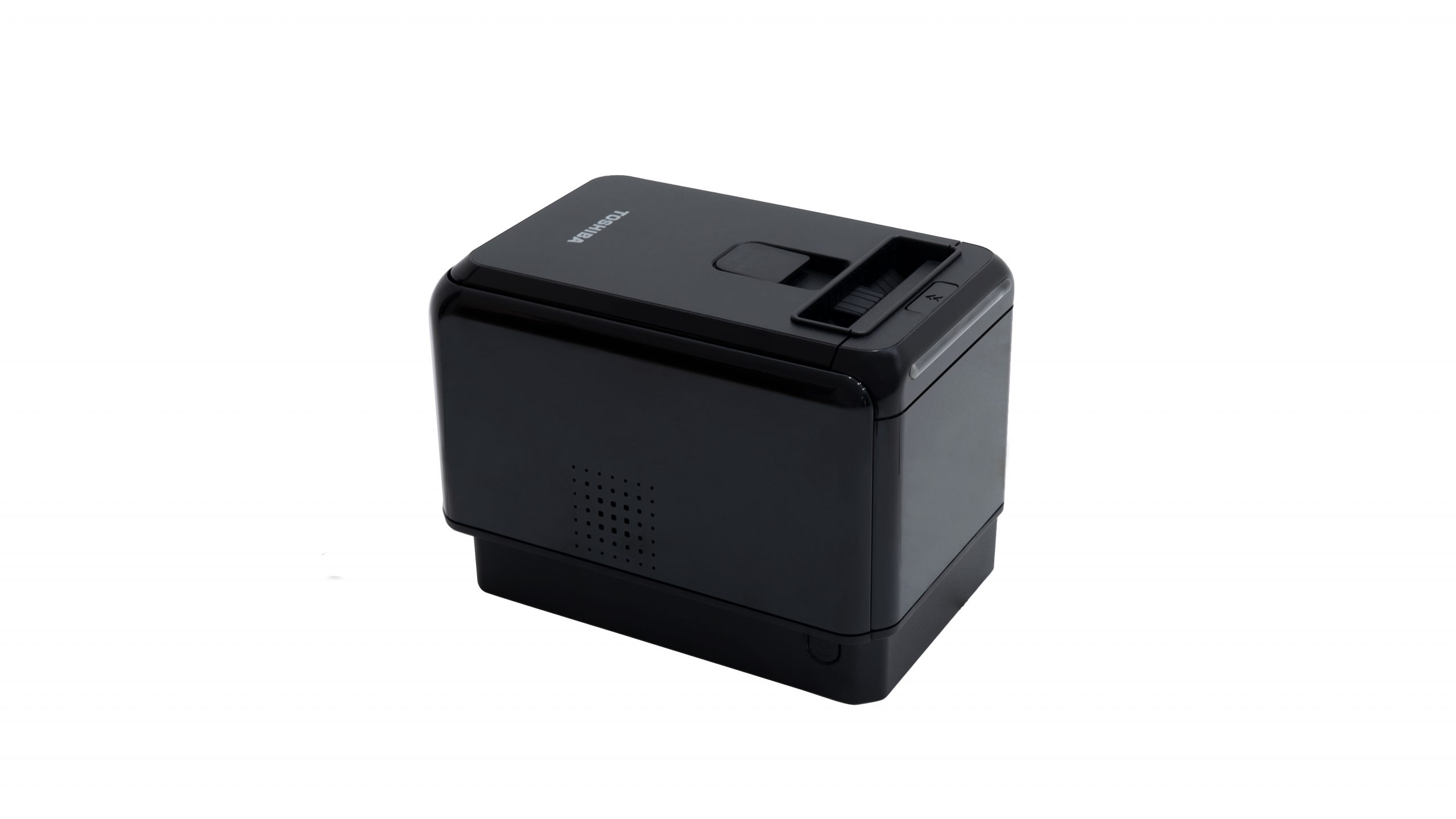

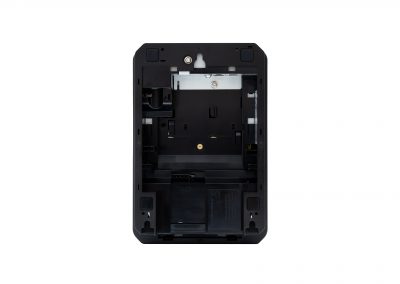

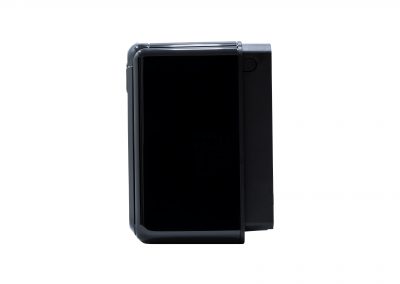

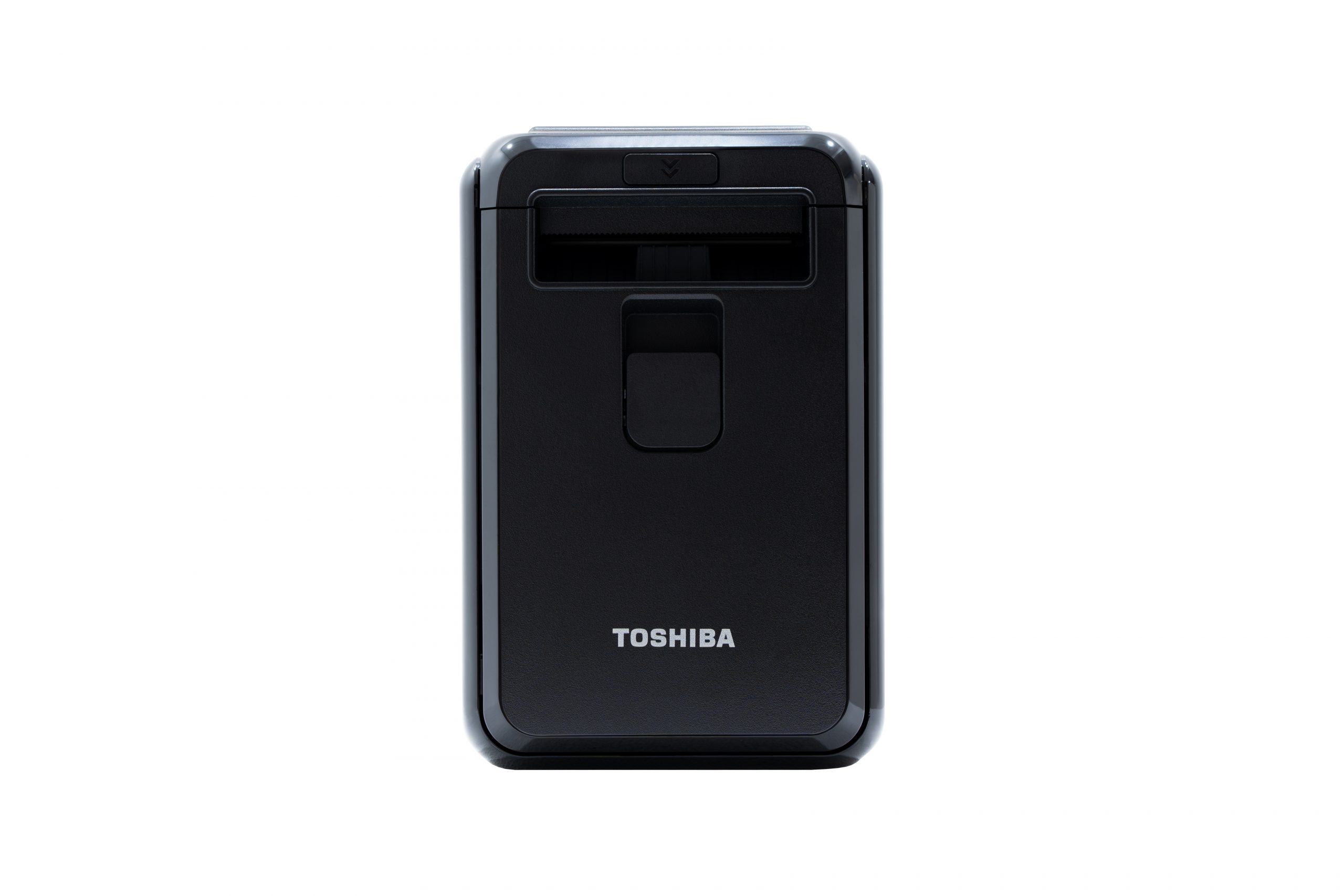

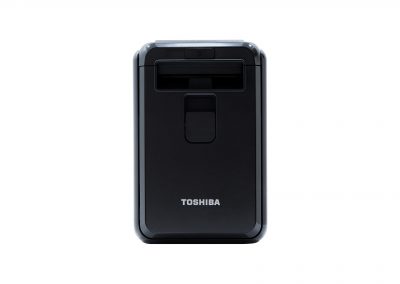

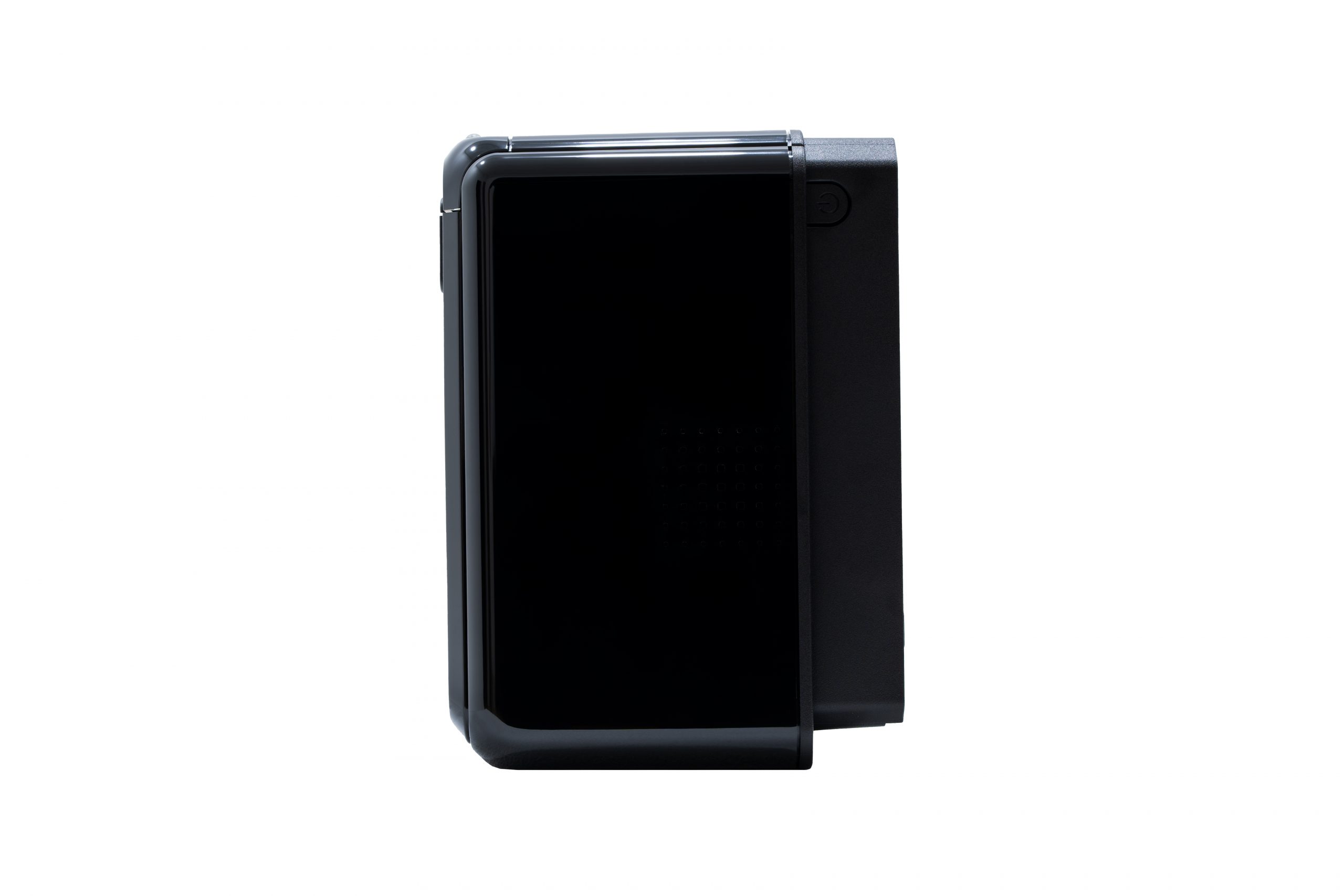

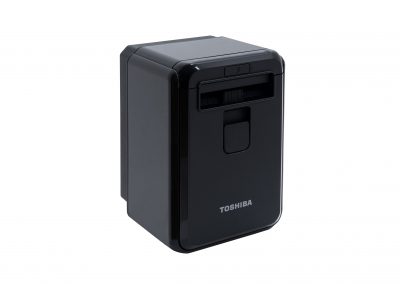

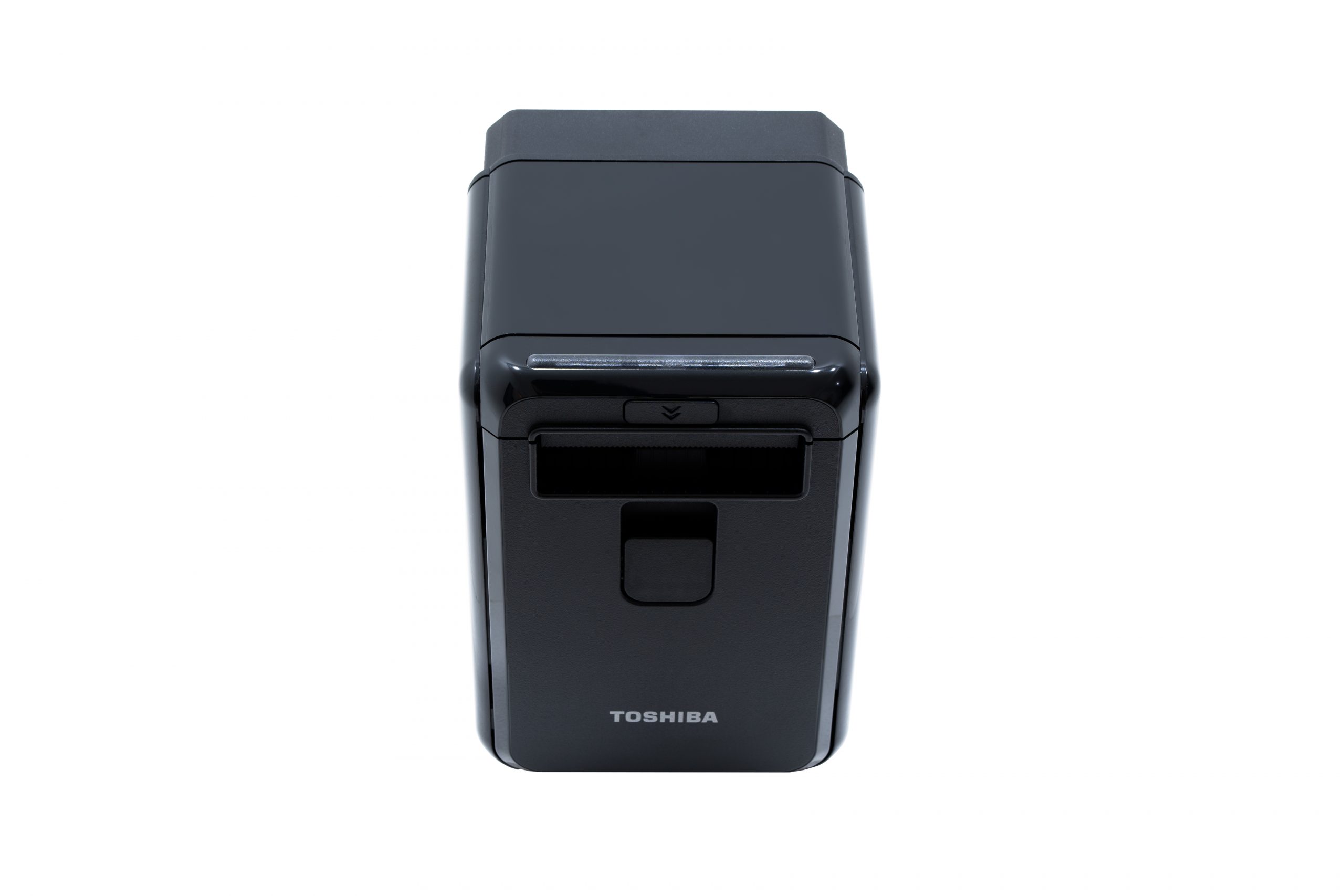

TOSHIBA TRST-L1
LINERLESS PRINTER
An all-in-one linerless printer built for exceptional reliability and versatility across diverse industries. This innovative solution handles thermal receipt paper, linerless media, and barcode labels within a single device. Designed with dual-orientation flexibility, it easily integrates into your business operations to meet evolving needs.
DURABILITY
Description
EFFICIENCY
Description
Unique Selling Paint Icon
Description
Unique Selling Paint Icon
Description
SUITABLE FOR
AIRPORT
THEATER
LOTTERY
TECHNICAL SPECIFICATIONS
| Model Name | TRST-L1N | ||
|---|---|---|---|
| Performance | |||
| Maximum Print Speed | Receipt mode: 203 mm/sec, 8ips | Label mode: Max 203 mm/sec, 8ips | |
| Hardware | |||
| Interfaces USB |
Type-B: USB 2.0 High Speed Printer class - Built-in USB Type-A: USB High Speed - Built-in (For firmware/configuration update) Ethernet (10/100BASE-T) - option, RS232 - option | ||
| Cash Drawer Connection | RJ12 connector up to 2 cash drawers | ||
| Power Supply | External | ||
| Power Supply Voltage | 24 VDC | ||
| Power Consumption |
1) Terminal Power - Low Mode (Term Pwr-Low): Maximum printing power consumption is 55W 2) 60W Power Supply Mode (60W Ext Pwr): Maximum printing cycle power consumption is 60W | ||
| Energy Star Certified | Yes | ||
| Thermal Print Head Life | 150 km | 75 km | |
| Cleaning Interval for Linerless Paper | Every 3 km | ||
| Auto Cutter Life | 2M cuts with 2.4 mil thickness media using specified paper type (NPI TF50KS-EY) |
1M cuts with Iconex 9023-2240, 9023-0075/MAXstick X2, PLUS D/StickyPOS BT80X270, HTFC10 80X270 Cleaning interval for linerless paper is every 40,000 transactions | |
| Platen Life | 150 km | 30 km | |
| Cutter | Full and Partial cut | ||
| IP Rating | IP21 | ||
| Dimensions (WxDxH) | W 140mm x H 208mm x D 149.7mm | ||
| Weight (Kg) | 1.5 Kg | ||
| Case Color | Black | ||
| Print Fonts | |||
| Font A | 12 x 24 (48 CPL / 34 CPL / 23 CPL) | ||
| Font A (size 2) | 13 x 28 (42 CPL / 30 CPL / 20 CPL) | ||
| Font B | 9 x 24 (64 CPL / 44 CPL / 30 CPL) | ||
| Font B (size 2) | 10 x 28 (56 CPL / 40 CPL / 28 CPL) | ||
| Customized Font | Yes | ||
| Code Page | |||
|
Code Page 437 (Default), Code Page 850, Code Page 860, Code Page 863, Code Page 865, Code Page 852, Code Page 866, Code Page 857, Code Page 1252, Code Page 858, Code Page 1251, Code Page 1253, Code Page 1254, Code Page 1256, Code Page 1257 | |||
| Double Byte Code Pages | Yes (GB18030) | ||
| Bar Codes Supported | |||
|
UPC-A, UPC-E, JAN-13 (EAN13), JAN-8 (EAN8), CODE39, Interleaved 2 of 5 (ITF), CODABAR (NW-7), Code 93, Code 128, PDF417, GS1 DataBar, QR code, Data Matrix | |||
